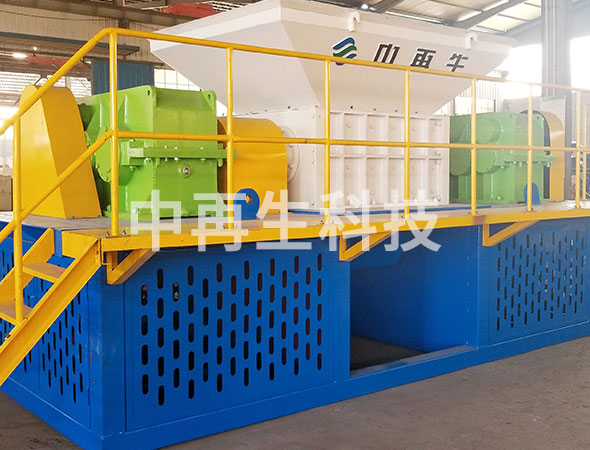

DS46100 Series Twin Shaft Shredder

Application areas:

Product Introduction

The dual axis shredder for waste tires, rubber, household waste, rubber tubes, rubber sheets, and rubber pads is an efficient solid waste reduction equipment. It mainly tears various solid wastes such as wood, plastic, metal, etc. through two rotating blade shafts. This device not only has a large processing capacity, but also can effectively reduce capacity, thereby saving storage and transportation costs. In terms of environmental protection, dual axis shredders can reduce the pressure on landfills, promote the classification, recycling, and reuse of waste, and contribute to the development of circular economy.

%e9%a6%96%e5%9b%be02-4
%e9%a6%96%e5%9b%be03-4

The blade is forged from high-quality materials and special alloy tool steel, which has high strength and wear resistance, and can meet the shredding needs of various hard materials. It has multiple functions such as tearing, squeezing, and biting, and is suitable for shredding various materials. Usually equipped with a microcomputer automatic control system, it has functions such as start, stop, reverse, and overload automatic reverse control, making it easy to operate and safe and reliable. The equipment generates less noise and dust during operation, which meets environmental standards.

%e9%a6%96%e5%9b%be04-4
%e9%a6%96%e5%9b%be05-2

Product advantages

  • 1.Integral cutter box

    The integral cutter box is designed and processed as a whole, with high mechanical strength, high stability and reliability; The cutter box is divided into upper and lower parts, which is convenient for overhaul and maintenance and shortens the downtime. The overall annealing treatment eliminates the prestress caused by welding, which is not easy to deform after long-term use, with better comprehensive performance and longer service life.

  • 2.Imported alloy cutting tools

    The tool is made of imported alloy steel, with high wear resistance and moderate toughness. It is processed by high-precision machine tools, with significantly improved mechanical properties and greatly extended service life. The tool can be repaired by surfacing for many times to save the use cost and prolong the service life.

  • 3.High degree of automation

    Usually equipped with a microcomputer automatic control system, it has functions such as start, stop, reverse, and overload automatic reverse control, making it easy to operate and safe and reliable.

Technical Parameter

Model Power(kW) Grinding chamber dimension(mm) Total Weight(t) Size(mm)
DS46100 55+55/6 1090X1080 8 5400X2000X2730
DS46120 75+75/6 1210X1080 17.5 5520X2000X2730
DS46150 90+90/6 1570X1080 18 5880X2000X2730
DS46180 90+90/6 1810X1080 18 6120X2000X2730
DS46200 90+90/6 1810X1080 18 6120X2000X2730
