SC7080 Metal Hammer Mill

Application areas:

Metal Chips Scrap Steel Raw Aluminum Hardware Scrap Home Appliances Cooked Aluminum

Inquiry

Product Introduction

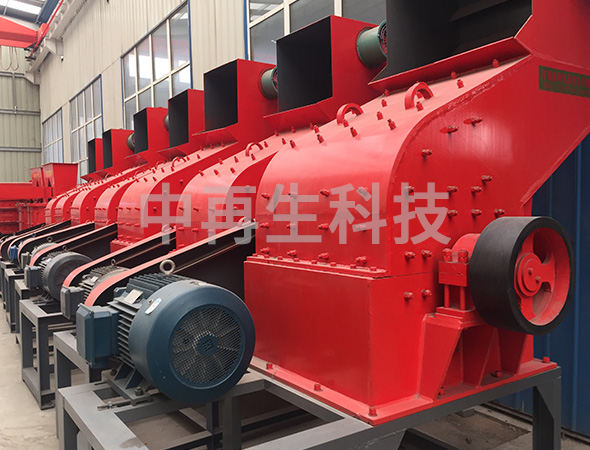

SC7080 crusher is a small crushing equipment developed by China renewable technology. It is mainly used to process thin-walled containers such as cans, paint barrels, computer hard disks and small materials. The equipment integrates crushing, magnetic separation and dust removal. It can remove impurities, improve the stacking density and unify the material type, so as to achieve the purpose of fine material feeding into the furnace.

The SC7080 small scrap steel crusher is mainly used for crushing and sorting small metal tanks and packaging containers (such as cans, mooncake boxes, paint buckets, etc.) to separate and recycle magnetic materials from non-magnetic materials. This helps to reduce transportation costs, improve the efficiency of ironmaking, and plays an irreplaceable role in areas such as deoxidation or metal processing in steel mills.

Product advantages

1.Convenient operation

The crushed material particles are uniform, easy to put into the furnace, and the water yield is high during smelting.
2.Meet the diversified needs of customers.

The discharge particle size can be adjusted by changing the sieve plates with different pore sizes to meet the diversified needs of customers.
3.Impact resistance and wear resistance

The hammer head and lining plate made of alloy casting are impact resistant and wear-resistant, with low production cost. A cleaning position is reserved for cleaning and maintenance inside the crusher.

Technical Parameter

Model	Power(kW)	Feed size(mm)	Average capacity(t/h)
SC6050	22-37	600×800	0.3-0.5
SC7080	37-55	600×760	0.8-1
SC8010	55-75	1000×800	0.3-0.5
SC1280	75-200	1000×1200	1.5-2.5
SC1210	132-200	1200×650	3-6
SC1214	200-315	600×1200	0.3-0.5
SC1415	55-75	1000×800	0.3-0.5
SC1680	132-200	1300×1500	3-5
SC1690	132-315	1000×900	5-6
SC1614	450-560	900×1660	750
