SC8010 Metal Hammer Mill

Application areas:

Metal Chips Scrap Steel Raw Aluminum Hardware Scrap Home Appliances Cooked Aluminum

Product Introduction

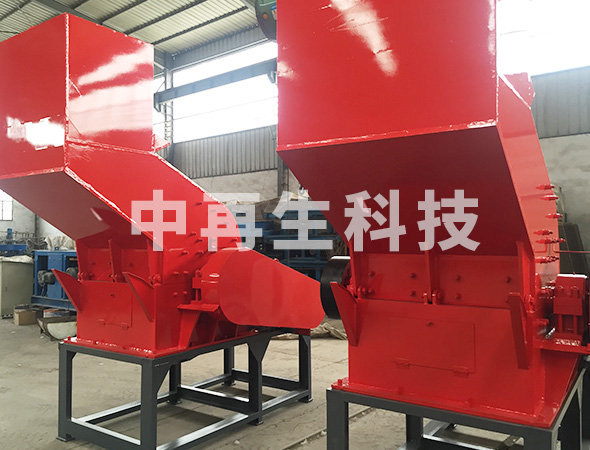

The SC8010 Metal Hammer Mill is a specialized equipment used for processing scrap aluminum materials. It mainly crushes and crushes scrap aluminum through mechanical force to achieve the recycling of scrap aluminum. The working principle of a small aluminum scrap crusher is to crush the waste aluminum material into smaller sized fragments through the action of mechanical force. It mainly consists of a frame, transmission system, feeding device, crushing chamber, discharging device, and other parts.

%e9%a6%96%e5%9b%be01-24
%e9%a6%96%e5%9b%be02-25

The working principle of the SC8010 small waste aluminum crusher is to feed the waste aluminum material into the crushing chamber of the crusher, and the transmission system controls the operation of the crusher to generate high-speed rotating cutting tools to crush the aluminum material into fragments. The screen in the crushing chamber screens the crushed aluminum fragments to meet the required particle size requirements. After screening, the aluminum fragments are discharged from the discharge port and can enter the next process for further processing.

%e9%a6%96%e5%9b%be03-25
%e9%a6%96%e5%9b%be04-24

Product advantages

  • 1.Convenient operation

    The crushed material particles are uniform, easy to put into the furnace, and the water yield is high during smelting.

  • 2.Meet the diversified needs of customers.

    The discharge particle size can be adjusted by changing the sieve plates with different pore sizes to meet the diversified needs of customers.

  • 3.Impact resistance and wear resistance

    The hammer head and lining plate made of alloy casting are impact resistant and wear-resistant, with low production cost. A cleaning position is reserved for cleaning and maintenance inside the crusher.

Technical Parameter

Model Power(kW) Feed size(mm) Average capacity(t/h)
SC6050 22-37 600×800 0.3-0.5
SC7080 37-55 600×760 0.8-1
SC8010 55-75 1000×800 0.3-0.5
SC1280 75-200 1000×1200 1.5-2.5
SC1210 132-200 1200×650 3-6
SC1214 200-315 600×1200 0.3-0.5
SC1415 55-75 1000×800 0.3-0.5
SC1680 132-200 1300×1500 3-5
SC1690 132-315 1000×900 5-6
SC1614 450-560 900×1660 750
