The transmission device of ss40100 series shredder is mainly composed of reducer and coupling. The reducer is fixedly installed on the frame through the torque arm. At the same time, the input end of the reducer is connected with the motor shaft installed on the frame, the output end is connected with one end of the coupling, and the other end of the coupling is connected with the knife roll. Most reducers adopt three-stage or four-stage transmission, with large speed ratio, which can effectively reduce the speed during crushing to increase the torque.
The SS40100 single axis shredder is mainly used to shred various materials such as plastic, rubber, wood, paper, household waste, etc. to meet the waste recycling and processing needs of different industries. It adopts a single axis design, which has the advantages of simple structure, easy operation, and low maintenance cost. The working principle of this device is that materials enter the shredder box through the feeding system, and the box carries shredder blades. The material pushing box pushes the material near the blade, and the material is torn into small pieces by the comprehensive effects of tearing, squeezing, and shearing of the shredding blade, and then discharged from the sieve hole.
When the shredder is working, the torque arm acts a torque opposite to the rotation direction of the cutter roll on the reducer, effectively preventing the reducer from rotating during the working process, ensuring the stability of the crusher and reducing the failure rate. The coupling connects the reducer with the cutter roller, which has the function of overload protection.

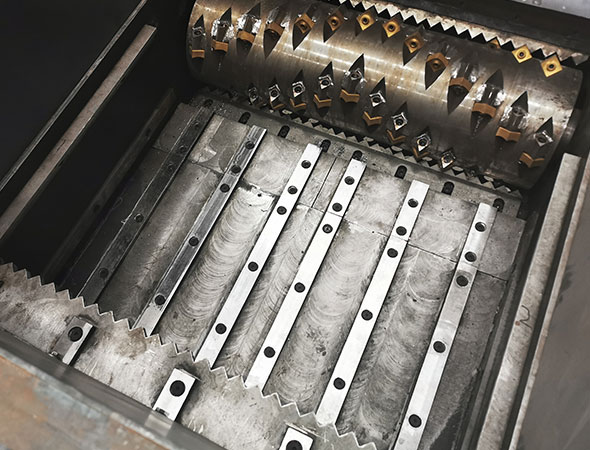

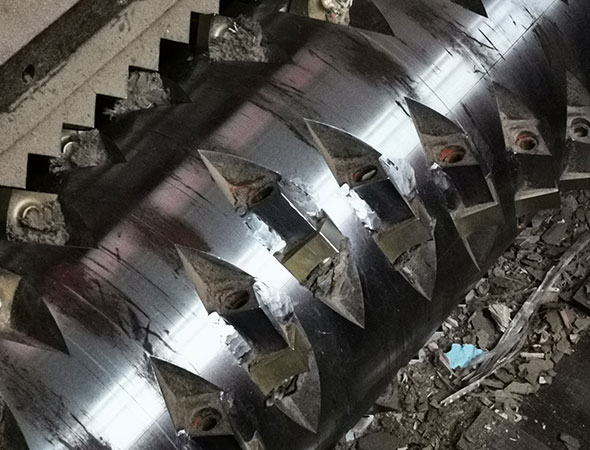

Ss40 series shredder cutter shaft is usually made of alloy steel or carburized steel, which is generally assembled with cutter particles after casting and reprocessing; The blade is fixed on the blade shaft by screws, which is convenient for subsequent replacement and maintenance of the blade. According to the different components of the shredded domestic waste, the cutter particles are arranged differently on the main shaft. Here, the spiral V-shaped arrangement is adopted. This staggered arrangement makes the domestic waste move along the middle of the cutter box during crushing, and improves the shredding efficiency.
A small hole is opened near the bottom of the fixed jaw plate to form a large to small crushing cavity with the knife roller. The fixed jaw plate generates upward resistance to the objects moving downward with the cutter roller. After the cutter particles and the materials sheared by the fixed jaw plate are extruded and crushed again in the crushing chamber, they fall from the small hole of the fixed jaw plate to complete the crushing of domestic waste.
| Model | Power(kW) | Grinding chamber dimension(mm) | Total Weight(t) | Size(mm) |
| SS40100 | 45 | 1410×1000 | 8 | 2825x2004x1875 |
| SS40120 | 75 | 1410X1200 | 9 | 2825x2564x1875 |
| SS40150 | 90 | 1410X1500 | 9 | 2825x2964x1935 |
| SS48150 | 75 | 1650X1500 | 9 | 3135x2968x2105 |
| SS48200 | 75 | 1420X2000 | 9 | 3255x4415x2720 |
