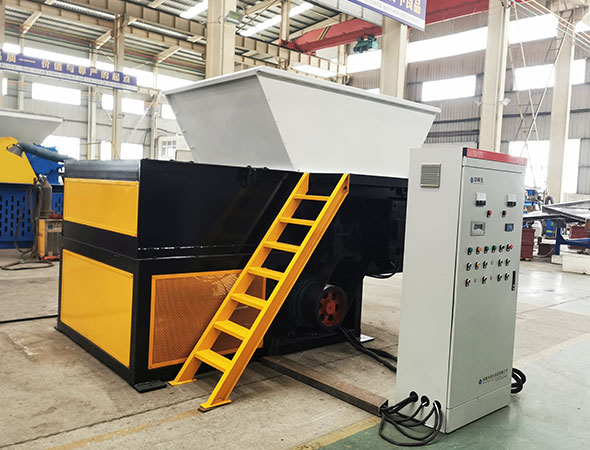

SS48150 Series Single Shredder Shaft

Application areas:

Waste tire wood waste packaging paperCardboard and other paper waste copper coreAluminum core cable and composite material cable carpetLabor protection clothing and other chemical fiber productsIndustrial solid waste glass fiber products and other composite materialsDomestic waste, waste plastics and other solid wastes

Product Introduction

ss48150 series single shaft shredder can meet the waste recycling requirements of various industries. It is suitable for the recycling of plastics, paper, wood, fiber, rubber and domestic waste. There are a wide variety of recyclable materials. The double single shaft shredder is suitable for recycling all kinds of large solid materials, difficult to handle materials, plastic containers, plastic barrels and plastic backing plates. The discharge size can be reduced to 20mm according to different requirements. And according to customer demand to provide a variety of feeding bucket. The equipment has the advantages of low speed, low noise and more energy saving.

01-3
02-3

SS48150 single axis shredder is a crushing machinery that uses impact energy to crush materials. It can meet the waste recycling requirements of various industries and is suitable for plastic, paper, wood, fiber, rubber, household waste recycling and treatment. There are many types of recyclable materials. At the same time, the equipment is also suitable for industrial sectors such as metallurgy, mining, cement, and chemical engineering, as well as fields such as highways, water conservancy engineering, and construction engineering.

03-3
04-3

Product advantages

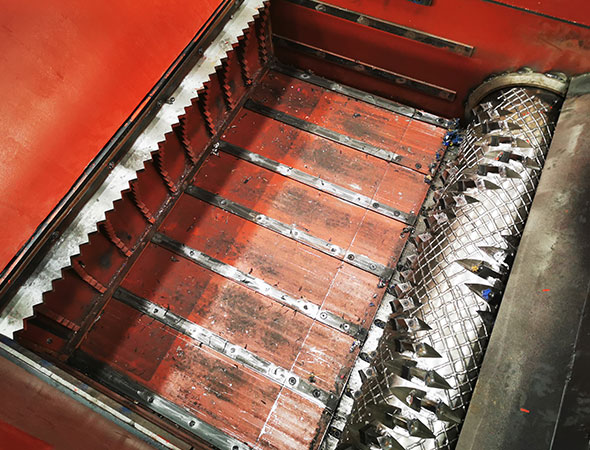

  • 1.The blade is made of cold working die steel

    The blade is made of cold working die steel, with good strength, high toughness and high cutting performance. The blade has four cutting edges, which can be rotated 90 ° after wear and continue to be used.

  • 2.External bearing design

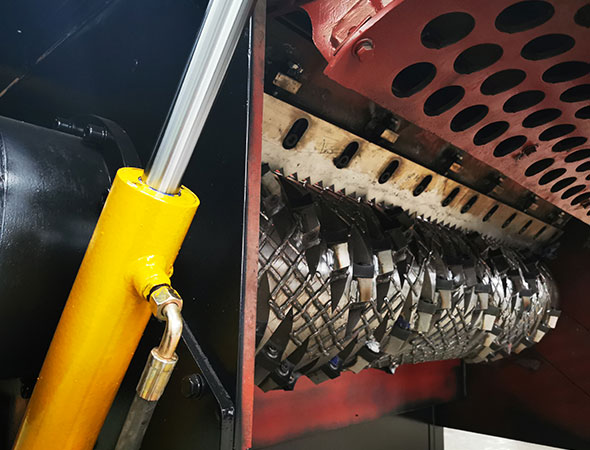

    The external bearing design can prevent water and dust, and prolong the service time of the bearing. Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsive force.

  • 3.Dual drive option

    Hard tooth surface reducer has high transmission efficiency, strong bearing capacity and low noise.

Technical Parameter

Model Power(kW) Grinding chamber dimension(mm) Total Weight(t) Size(mm)
SS40100 45 1410×1000 8 2825x2004x1875
SS40120 75 1410X1200 9 2825x2564x1875
SS40150 90 1410X1500 9 2825x2964x1935
SS48150 75 1650X1500 9 3135x2968x2105
SS48200 75 1420X2000 9 3255x4415x2720
