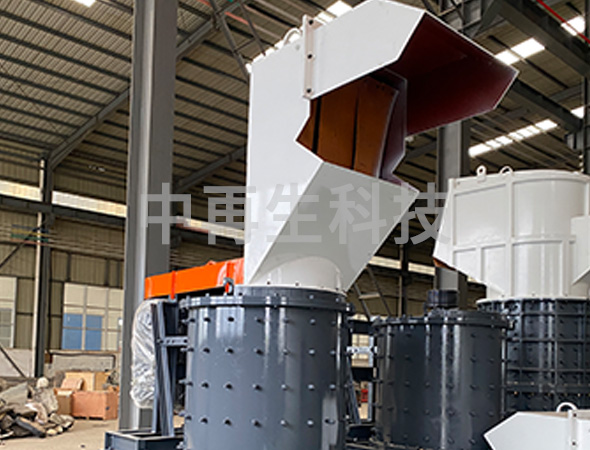

The VSC1000 Vertical Hammer Crusher is a type of crushing equipment designed to process and recycle various types of scrap metals. The machine uses high-speed rotating hammers to crush and break down large and heavy metal pieces into smaller, more manageable fragments.
The VSC1000 vertical hammer crusher operates by rotating high-speed hammers to impact the material. The material is fed into the machine’s top, where it is impacted by the hammer rotor and subjected to further crushing as it falls to the bottom. The smaller, crushed metal pieces are then ejected through the discharge port.
The vertical hammer crusher offers high crushing efficiency due to its powerful hammering system. It quickly processes scrap metal materials, reducing their size effectively and enhancing throughput.
Constructed with high-quality materials, this crusher is designed for long-term use. The hammer and internal components are engineered to resist wear and tear, ensuring long operational life and reduced maintenance.
The machine can process a wide range of scrap metal, including ferrous and non-ferrous metals such as steel, aluminum, copper, and more. It is suitable for recycling centers, metal processing plants, and other industrial applications.
| Model | Power(Kw) | Feeding hopper size(mm) | Cylinder diameter(mm) | Dimension(mm) |
| VSC-800 | 30 | 160X230 | 800 | 2200X860X1980 |
| VSC-1000 | 55-75 | 270X380 | 1000 | 2700X1160X2000 |
| VSC-1250 | 75-110 | 270X400 | 1250 | 2800X1400X2730 |
| VSC-1500 | 160 | 450X360 | 1500 | 3000X2350X4850 |
