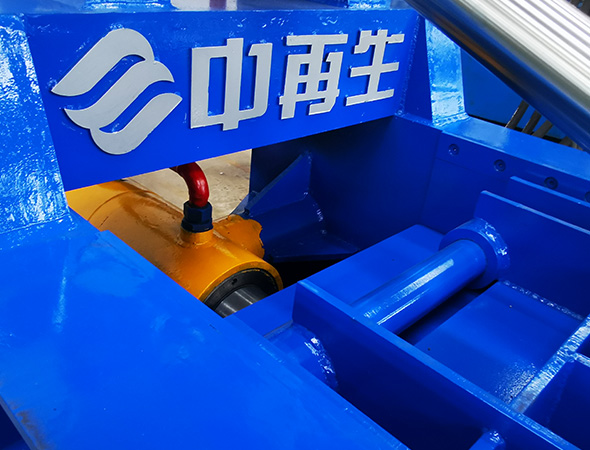

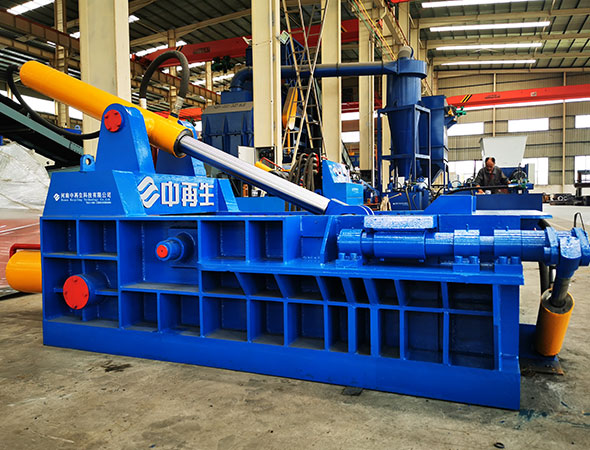

Y81-160a hydraulic packer is one of the main types of compression packaging machinery. It uses compression equipment to exert pressure on various loose materials under certain compression conditions without damaging the properties of materials, so as to reduce the volume, increase the volume density, and press out packages with uniform size, large proportion and high density. It is suitable for container shipping. So as to reduce transportation costs and increase economic benefits.

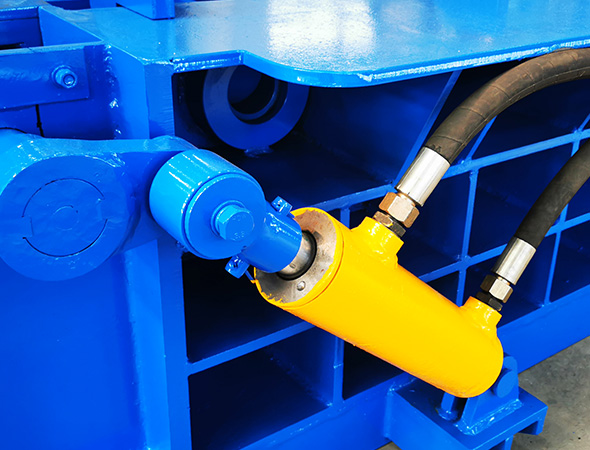

A metal baler is a device used to extrude various metal scraps, scrap steel, scrap iron, scrap copper, scrap aluminum and other metal raw materials into qualified furnace materials in the shape of rectangular prisms, cylinders, etc. The metal strapping machine adopts a hydraulic transmission system, which works smoothly, safely and reliably. The device supports manual or PLC automatic control operation modes, making it flexible and convenient to operate. There are four types of discharge forms: side flip packaging, side push packaging, front push packaging, or no discharge packaging, which meet the needs of different scenarios.
The hydraulic packer starts working at the station after feeding, and stops working at the time when the package is pushed out, which is a single working cycle.
There are two forms of bag turning and bag pushing. There are eight extrusion forces ranging from 63 tons to 400 tons, and the efficiency ranges from 0.5 tons / hour to 20 tons / hour.

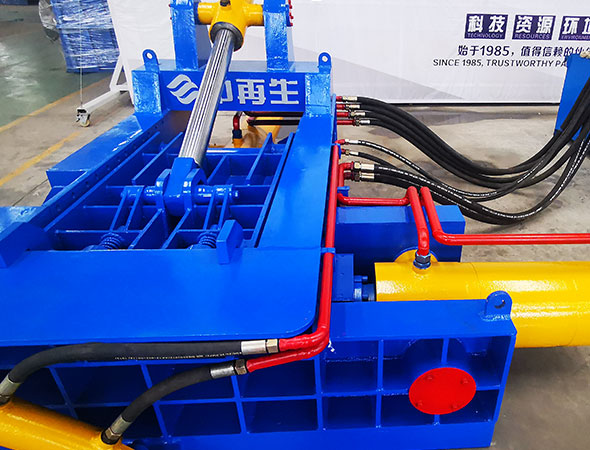

It adopts a rotary closed cover structure, with a large opening area of the material box, especially suitable for large, empty and thin materials
Model | Nominal thrust(kn) | Compression chamber size(mm) | Package size(mm) | Equipped with power(kw) |
Y81-160A | 1600 | 1600*1000*800 | (400-600)*350*350 | 22 |
