Feed width:1600mm
Production capacity:15-20t/h
In the scrap processing industry, scrap not only has a wide variety, but also has uneven impurity content, so it is difficult to deal with. The emergence of scrap crusher enables different kinds of materials, whether you are angle steel, channel steel, scrap steel, scrap angle iron, or steel pipe, steel bar and profile, to realize reasonable crushing and reprocessing of scrap steel through the powerful capacity of scrap crusher.
The aluminum alloy recycling, crushing, and sorting production line is a professional equipment combination used to process waste aluminum materials. It can crush waste aluminum, aluminum alloys, and other waste aluminum materials into smaller fragments, and classify and recycle them. Aluminum alloy crusher: It is the core equipment of the production line, used to crush waste aluminum materials into smaller fragments. The crusher is usually equipped with hammer heads and lining plates made of high manganese steel to ensure the crushing effect and durability of the equipment. Magnetic separator: used to separate iron impurities from crushed waste aluminum materials and improve the purity of waste aluminum. Vibration screen: Screen the crushed waste aluminum particles and separate them into different particle sizes for subsequent processing.
The smelting cycle of the scrap crushed by the crusher is relatively short, the crushed steel is uniform, and can be smelted quickly; After processing, the chemical composition of molten steel after smelting is stable and contains low sulfur and phosphorus.
Compared with that before crushing, the recovery rate of crushed steel is greatly improved. Due to the crushing work in the early stage, the smelting process becomes simple, and the power consumption cost per ton of molten steel is greatly reduced.
The crushing process reduces impurities, so as to reduce air pollution and slag; Uniform crushing of steel can effectively increase the lining time in the furnace.

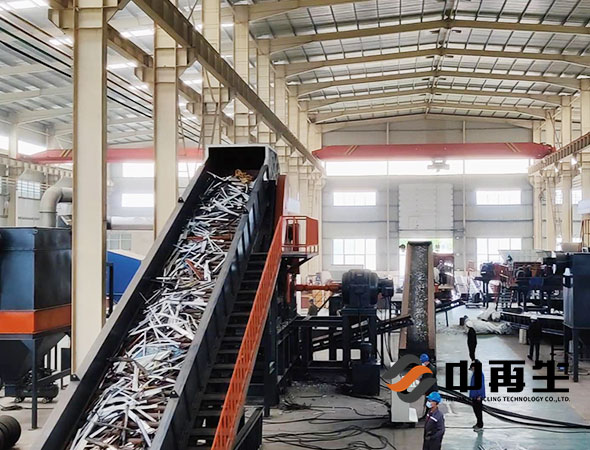

The working principle of the waste aluminum recycling and crushing production line is as follows: 1. Feeding: The waste aluminum material is lifted to the main machine feed inlet through the feeding conveyor belt. 2. Crushing: The aluminum alloy crusher uses the hammer heads on the main shaft rotor to alternately strike the metal waste, crushing and kneading the aluminum alloy material. 3. Discharge: The crushed waste aluminum particles are discharged from the discharge conveyor belt and enter the subsequent sorting process. 4. Sorting: After being processed by equipment such as magnetic separators, vibrating screens, pneumatic separators, and eddy current separators, the iron impurities, light impurities, and other metal materials in the waste aluminum material are separated to obtain pure aluminum metal.
| Model | Inlet width(mm) | Power(kW) | Average capacity(t) |
| SCL600 | 1600 | 475 | 15-20 |
| SCL1000 | 2200 | 750 | 20-25 |
| SCL1200 | 2200 | 900 | 25-30 |
| SCL1600 | 2200 | 1200 | 15-20 |
Material to be treated: Kitchen scraps
Finished product dimension: 15t/h
Material to be treated: F15 Fighter Aircraft Replaced Wear Parts
Finished product dimension: 2-4t/h
Material to be treated: Trash cans, sofas and other bulky waste
Finished product dimension: 4-8t/h
